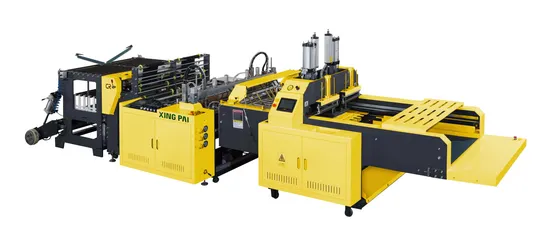

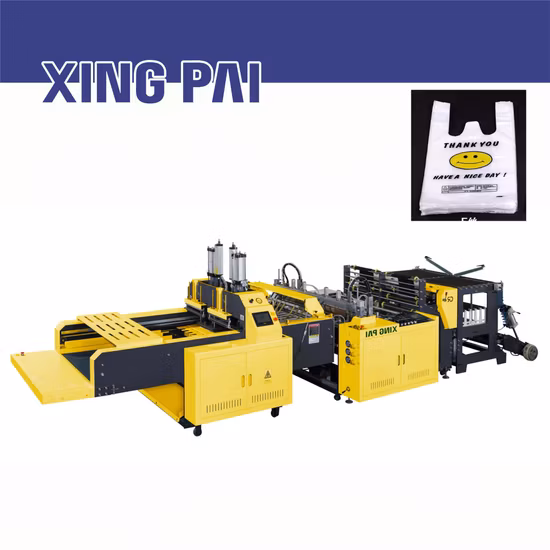

High Speed Polythene Biodegradable Plastic Shopping T

Basic Info.

Model NO.	SHXJ-E 1000/1200
Sealing & Cutting	Heat-Sealing Cold-Cutting
Layer	Double
Machine Type	Sealing Machine
Computerized	Computerized
Type	Plastic Bag Making Machine
Touch Screen	Mcgs
Bag Type	T-Shirt Bag. Flat Opening Bag
PLC	Inovance
Weight of Overall	2000-3000kgs
Certificate	Ce. ISO ,SGS
Punching Device	with Automatic Punching
Max.Speed	120-140PCS/Min X 8lines
Inverter	Inovance
Motor	Servo Motor
Max.Bag Width	200-300mm X 8lines
Material	HDPE.LDPE. Biodegradable
Transport Package	Standard Export Wooden Box. Pallet Bottom
Specification	8000X2200X 2200mm
Trademark	sanbi
Origin	China
HS Code	847780000
Production Capacity	30sets/Month

Product Description

8Lines Automatic t-shirt bag making machine
1 .Characteristics Double-layer,Eight-line,Bottom Sealing Bag-making Machine has such functions as photoelectric automatic traching microcomputer length setting,high limit stopping,automatic counting,automatic alarm on reaching the set value,high compensating accuracy with such characteristics as neatbags,little error and high automatic of whole machine,so it is a kind of ideal equipment for producing blank bags,colour bags,flat bags and vest bags,etc.And other varlous plastic soft packing bags 2. Features: 1. Computer control over the entire process. 2. From film roll to final bag, one process flow.3. Servo motor, makes it easy to adjust the bag length and the production speed.4. Automatic film feeding, coordination free from tension adjustment.5. High production efficiency to save manpower and time.6. Equipment with heat sealing and cold cutting device

Model of Machine	SHXJ-E 850	SHXJ-E 1050	SHXJ-E 1250
Max.bag cutting Width	150mmx4lines x2 layers	200mm x 4lines x 2layers	270mm x 4lines x 2 layers
Max.bag cutting Length	200-500mm	200-600	200-700
Thickness	0.009 -0.1mm	0.009 -0.1mm	0.009 -0.1mm
Speed	20-140pcs/min	20-140pcs/min	20-140pcs/min
Driving Motor	2.2KW	2.2KW	2.2KW
Overall Power	3KW	4KW	5KW
Weight of Overall	1700KG	2000KG	2500KG
Overall Dimensions	7500X1800X 2000MM	8000X2000X 2000MM	8000X2200X 2200MM
